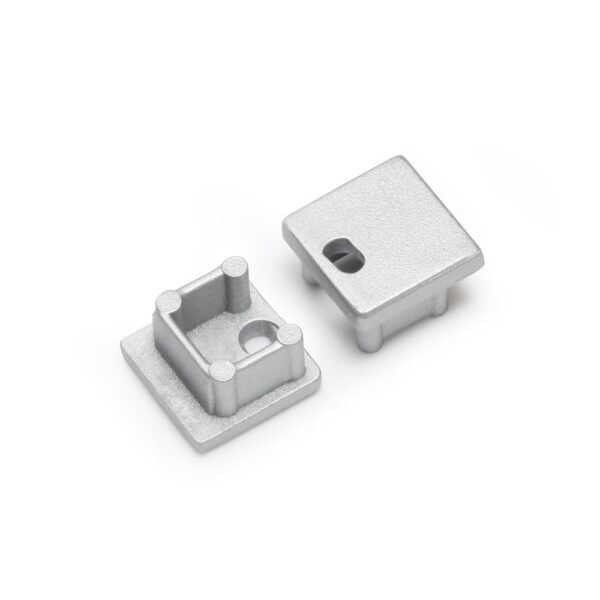

LED strip only ~ channel, covers, end caps and all other accessories are sold separately
Description

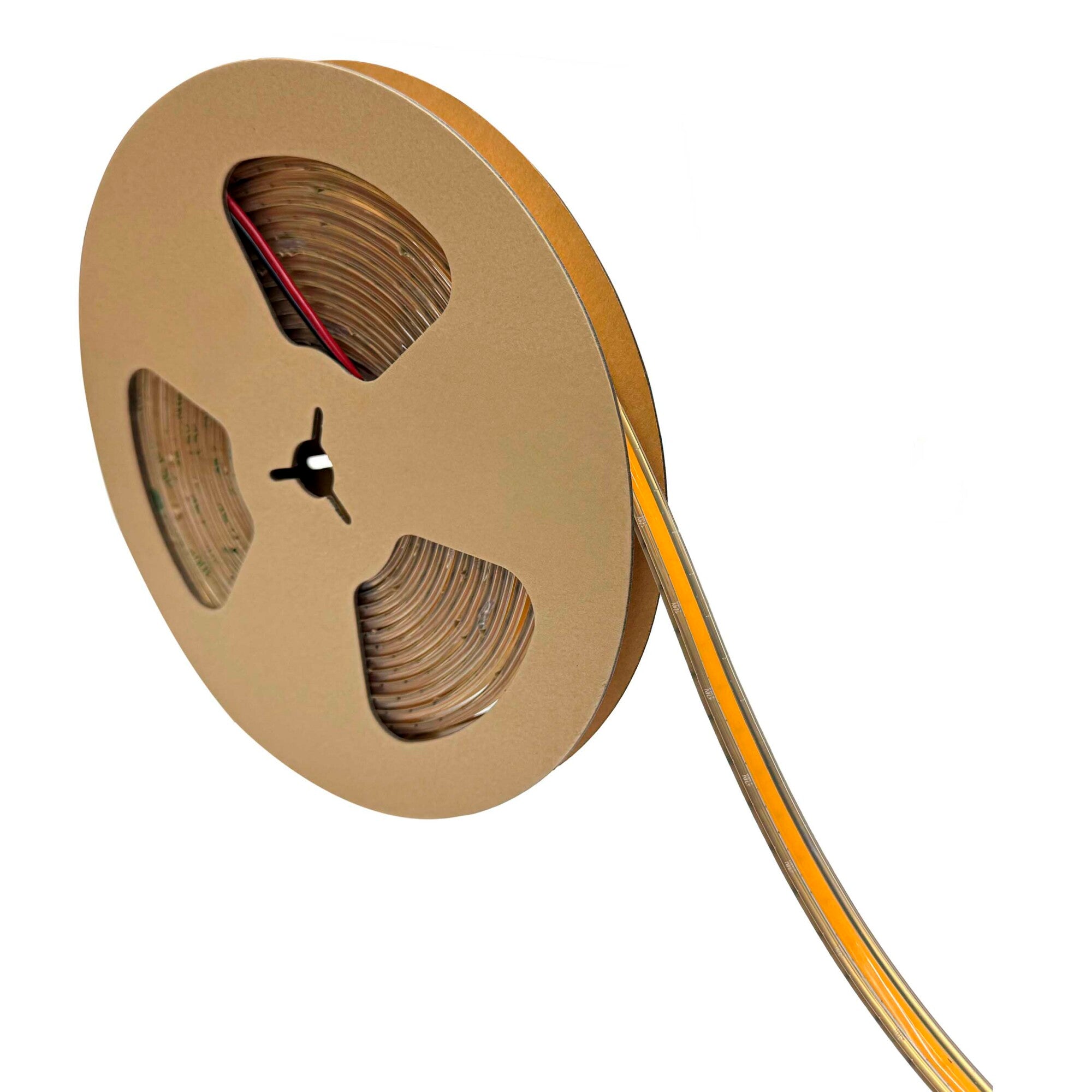

Elite Gold IP67 series is a waterproof high-performance flexible LED strip designed for seamless, uniform lighting in linear luminaires, offering superior quality and efficiency. With COB (Chip on Board) technology, it ensures dot-free lighting even in shallow profiles, creating a smooth, continuous line of light.
The PCB surface features a thin layer of gold, ensuring easier, faster, and safer soldering while protecting against oxidation and reducing voltage drop for optimal performance.?The gold surface also acts as a continuous soldering pad, allowing soldering at any point along the strip for maximum installation flexibility.
This strip is cuttable every 10mm (0.39″), allowing for precise customization without compromising performance. Even if it’s cut in the wrong place, the small unlit section is unnoticeable once placed inside a profile with a cover.
It boasts a CRI of at least 85 ? the 2800K and 2300K variants are at least 90 ? ensuring excellent color rendering for vibrant, true-to-life lighting. Ideal for architectural and decorative lighting applications, the Elite Gold IP67 Series LED strip combines advanced technology with premium materials to deliver exceptional efficiency, reliability, and color rendering.
With an IP67 rating, the Elite Gold IP67 Series LED strip is dustproof and waterproof, making it ideal for both indoor and outdoor applications.
General specifications
- Supply voltage: 24V DC
- Power consumption: 15W/m
- Luminous flux:
- 2800K: 1342 lm/m
- 3000K: 1394 lm/m
- 4000K: 1607 lm/m
- 5000K: 1660 lm/m
- Luminous efficacy:
- 2800K: 91.1 lm/W
- 3000K: 93.6 lm/W
- 4000K: 109.0 lm/W
- 5000K: 111.7 lm/W
- CRI:
- 2800K ? 3000K: CRI 90+
- 4000K ? 5000K: CRI 85+

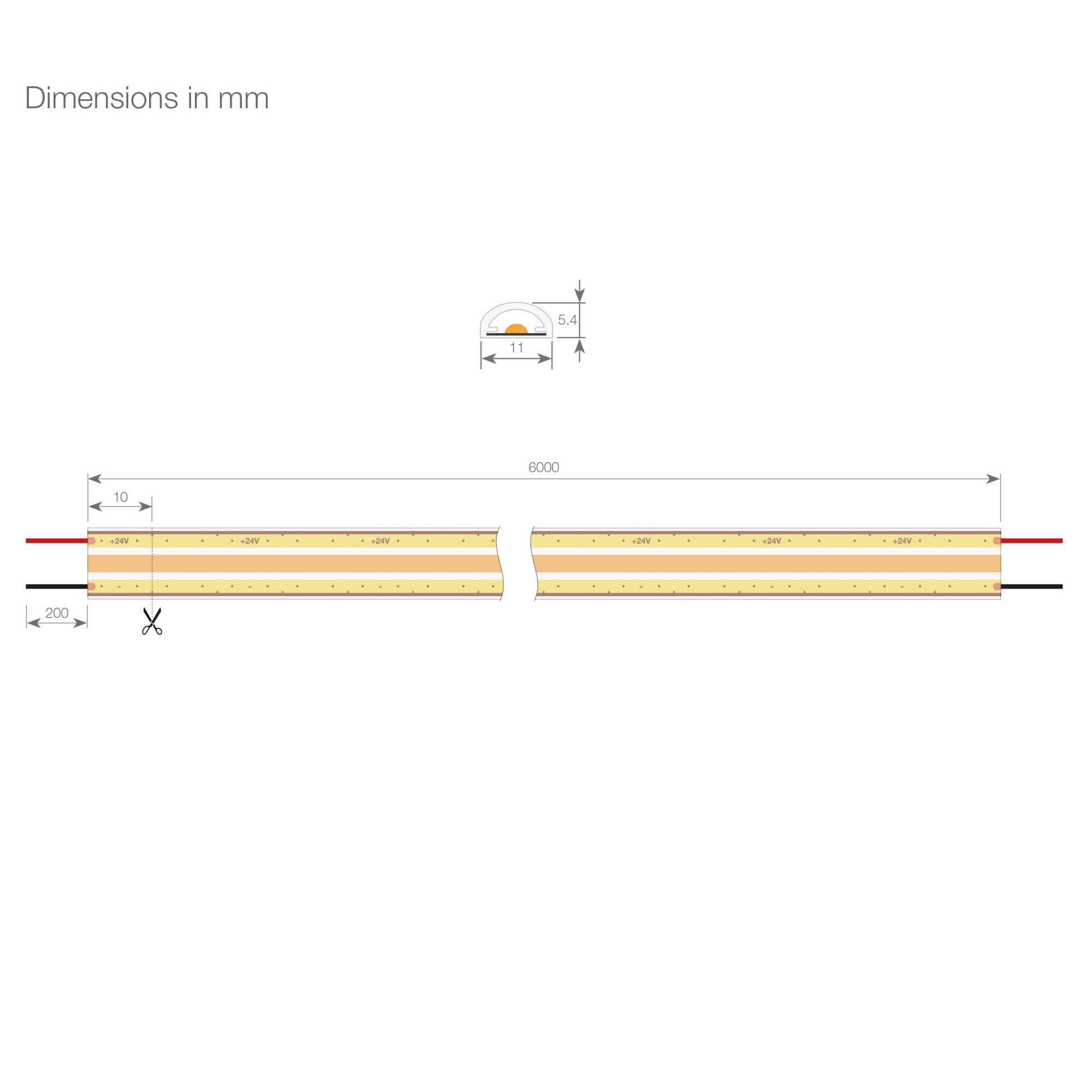

- Dimensions: 11mm (0.43″) wide x 5.4mm (0.21″) high
- Cutting pitch: 10mm (0.39″)
- Density: 400 LEDs per meter
- Beam angle: 140?
- IP rating: IP67
- Working temperature: -25?C / +45?C (-13?F / +113?F)
